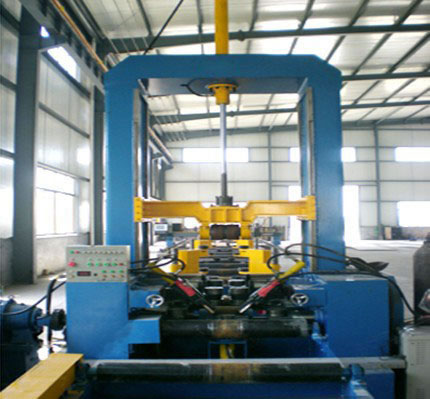

Automatic H Beam Assembly Machine

Automatic H Beam Assembly Machine

Introduction:

The H beam assembly machine is applicable to different kinds of H beam steel such as symmetry, dissymmetry, eccentricity and variable cross-section assembly and spot-weld. Adopting twin direction automatic centering unit, can automatically accomplish steel plate centered fixing, no need manual adjustment. And using three groups of wing plate and web auto hydraulic grip structure, solving the problem of tall-wiggling during web feeding.

Main Technical Parameter:

Size of Web Plate	Height	200-2000mm
	Thickness	6-32mm
	Length	4000-15000mm
Size of Flange Plate	Width	200-600mm
	Thickness	6-40mm
	Length	4000-1500mm
Welding Speed		500-1200mm/min
Total Power		8Kw (except for welding power source)
Straightening Speed		500-6000mm/min

By absorbing merits of similar automatic H beam assembly machine and using new technology from abroad and China domestic, Wuxi ABK is the professional producer to develop and manufacture the family automatic H beam assembly machine products as well as H beam (heavy steel) welding production line, as well as box-beam automatic welding production line, T-beam welding production line, bridge-face U-stiffer welding production line, and steel structure cold roll forming production line as well as CNC waterjet cutting machine. With years development, ABK automatic H beam assembly machine have been spread over Saudi Arabia, Russia, Middle Asian, Southeast Asian, Australia, Europe, South American, North American, etc. Look forward to establishing mutually beneficial cooperation.
