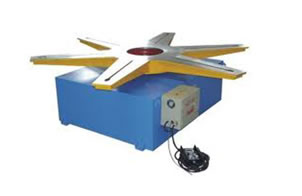

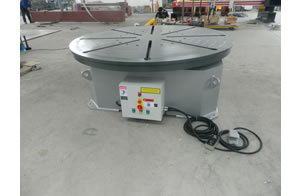

Description of Welding Turntable:

This welding turntable is mainly used for welding and assembling workpieces, and it is widely used in presser vessel production industry, petrol industry, chemistry, power stations, transportation, shipbuilding industry, steel field, and so on.
By attaching workpieces to the turntable, those workpieces are rotated to finish welding operation automatically. So it is an efficient way to improve the welding quality as well as to reduce the work load.
This welding turntable mainly consists of a worktable, a bearing, a base, a motor, and a speed reducer. And its worktable can be made according to specific requirements of our clients. Besides, some special welding turntable can be used in pressure vessel welding, round structure welding, and many other circular welding.

Features of Welding Turntable:

1. There are six T-shaped slots on the worktable in order to fix workpieces tightly.
2. Six stiffeners are welded on the rear side, thus the rigidity is largely improved and the deformation rate of the worktable is greatly reduced.
3. Worm gear box is adopted by this welding turntable.
4. It adopts stepless speed regulation method to ensure its reliable and stable performance.
5. It is easy to control and maintain, and it can meet various welding requirements of users.
6. The base is firm enough to ensure this machine stable turning.

Technical Parameters of Welding Turntable:

Load	Turning Velocity (rpm)	Worktable diameter of (mm)	Motor power (kw)	Speed regulation way
300kg	0.1-1	Φ600(or customized)	0.37	Variable frequency speed control
1t	0.05-0.5	Φ1200(or customized)	0.75
3t	0.05-0.5	Φ1400(or customized)	1.5
10t	0.05-0.5	Φ2000(or customized)	2.2
20t	0.05-0.5	Φ2500(or customized)	4
30t	0.04-0.4	Φ3000(or customized)	4

Wuxi ABK Machinery Co.Ltd is a professional manufacturer of welding turntable in China. And we can also provide our clients around the world with many other products including stack welding machine, pipe facing machine, wind tower production line, H beam welding line, pipe welding equipment, CNC cutting machine, grinding machine, roll forming machine, plate bending machine, etc. We have obtained ISO and CE certification, and we also offer OEM service. Our products have been well received by customers from many countries, such as Spain, India, Germany, South Africa, Brazil, Chile, Argentina, Russia, Italy, France, Vietnam, and more. If you're interested in our welding turntable, please don't hesitate to contact us whenever you want.
