CNC Flame Cutting Machine

CNC Flame Cutting Machine

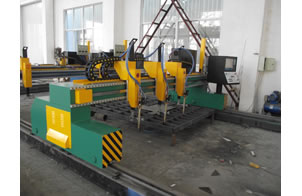

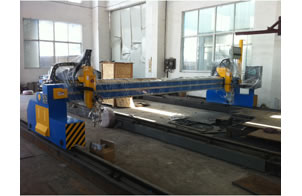

Description of CNC Flame Cutting Machine:

Our CNC flame cutting machine, also known as CNC flame cutter, is mainly designed to cut mild steel, high carbon steel, stainless steel, aluminum, copper, and many other non-ferrous metals. And it is widely used in many fields, such as pipe production, automobile, shipbuilding, petrochemistry, war industry, metallurgy, aerospace, boilers, pressure vessels, locomotives, and so on.

Features of CNC Flame Cutting Machine:

1. Our CNC flame cutter features high rigidity, high precision, stable and reliable performance, easy maintenance, etc.
2. All components of this cutter have undergone annealing, polishing, and painting.
3. It can be installed with plasma cutting torch.

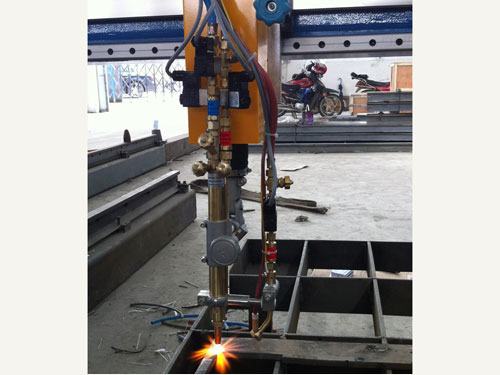

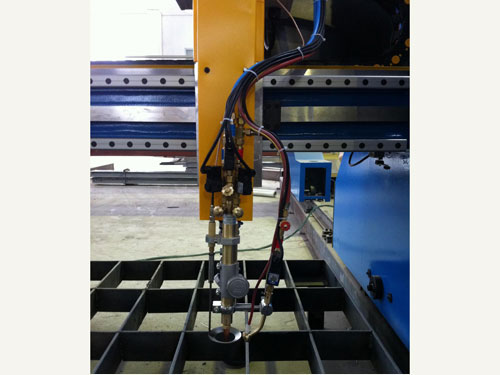

4. The lifting device of its cutting torch can be elevated by the ball guide rail automatically or electrically.
5. There is also autoignition function in it.

Technical Parameters of CNC Flame Cutting Machine:

Model	Driving form	Rail gap (mm)	Effective width (mm)	Cutting thickness(mm)		Cutting speed(mm/min)		Max speed (mm/min)	Vertical range (mm)
				Flame cutting	Plasma cutting machine	Flame cutting	Plasma cutting
CNCⅠ-2500	Single side	2500	1600	6-200 (Refer to the performance of the cutting head)	Varies with different models	100-750 (Refer to the performance of the cutting head)	Varies with the power supply	6000	200
CNCⅠ-3000	Single side	3500	2100					6000	200
CNCⅠ-4000	Single side	4000	3100					12000	200
CNCⅡ-4000	Double side	4000	3100					12000	200
CNCⅡ-5000	Double side	5000	4100					12000	200
CNCⅡ-6000	Double side	6000	5100					12000	200
CNCⅡ-7000	Double side	7000	6100					12000	200
CNCⅡ-8000	Double side	8000	7100					12000	200
CNCⅡ-9000	Double side	90000	8100					12000	200
CNCⅡ-11000	Double side	11000	10100					12000	200
CNCⅡ-12000	Double side	12000	11100					12000	200
CNCⅡ-13000	Double side	13000	12100					12000	200

Technical Parameters of CNC Series Digital Multi-Head Straight Cutter:

Model	Driving form	Rail gap (mm)	Effective width(mm)	Cutting thickness (mm)	cutting speed (mm/min)	Max speed (mm/min)	Vertical range (mm)
CNC-3000	Single side	3000	2100	6-200 (Refer to the performance of the cutting head)	100-750 (Refer to the performance of the cutting head)	6000	150
CNC-3500	Single side	3500	2600			6000	150
CNC-4000	Single side	4000	3100			12000	150
CNCⅡ-5000	Double side	5000	4100			12000	150
CNCⅡ-6000	Double side	6000	5100			12000	150
CNCⅡ-7000	Double side	7000	6100			12000	150
CNCⅡ-8000	Double side	8000	7100			12000	150
CNCⅡ-9000	Double side	9000	8100			12000	150
CNCⅡ-10000	Double side	10000	9000			12000	150
CNCⅡ-11000	Double side	11000	10100			12000	150
CNCⅡ-12000	Double side	12000	11100			12000	150
CNCⅡ-13000	Double side	13000	12100			12000	150

Established in 1999, Wuxi ABK Machinery Co.Ltd is a professional manufacturer of CNC flame cutting machine in China. Apart from CNC flame cutting machine, we still have many other high-quality products, such as CNC plasma cutting machine, CNC table cutting machine, wind tower production line, H beam welding line, welding equipment, pipe welding equipment, grinding machine, roll forming machine, plate bending machine, etc. With ISO and CE certification, our products are quite popular among clients from Spain, India, Germany, South Africa, Brazil, Chile, Argentina, Russia, Italy, France, Vietnam, and more. If you need CNC flame cutting machine, please contact us freely.
