CNC Plasma Cutting Machine

CNC Plasma Cutting Machine

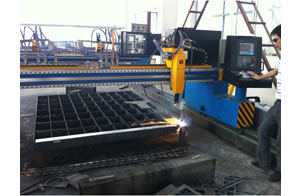

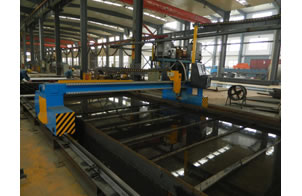

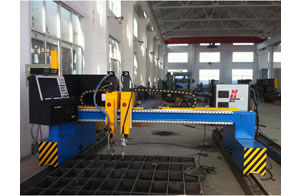

Description of CNC Plasma Cutting Machine:

This CNC plasma cutting machine, also called CNC plasma cutter, is widely used in various fields, such as oil industry, pressure vessels, pipe production line, wind power line, etc.

Features of CNC Plasma Cutting Machine:

1. This CNC plasma cutter can be equipped with three cutting torches and plasma cutting torch.
2. All components of this cutter have undergone annealing, polishing, and painting.
3. The lifting device of cutting torches can be automatically or electrically lifted by its ball guide rail.
4. Users can use the drag chain type or hanging type in order to display the pipeline.
5. This machine has an access to automatic fire lighting function.

Technical Parameters of CNC Plasma Cutting Machine:

Model	Driving form	Rail gap (mm)	Effective width (mm)	Cutting thickness(mm)		Cutting speed(mm/min)		Max speed (mm/min)	Vertical range (mm)
				Flame cutting	Plasma cutting machine	Flame cutting	Plasma cutting
CNCⅠ-2500	Single side	2500	1600	6-200 (Refer to the performance of the cutting head)	Varies with different models	100-750 (Refer to the performance of the cutting head)	Varies with the power supply	6000	200
CNCⅠ-3000	Single side	3500	2100					6000	200
CNCⅠ-4000	Single side	4000	3100					12000	200
CNCⅡ-4000	Double side	4000	3100					12000	200
CNCⅡ-5000	Double side	5000	4100					12000	200
CNCⅡ-6000	Double side	6000	5100					12000	200
CNCⅡ-7000	Double side	7000	6100					12000	200
CNCⅡ-8000	Double side	8000	7100					12000	200
CNCⅡ-9000	Double side	90000	8100					12000	200
CNCⅡ-11000	Double side	11000	10100					12000	200
CNCⅡ-12000	Double side	12000	11100					12000	200
CNCⅡ-13000	Double side	13000	12100					12000	200

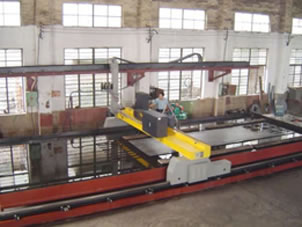

Technical Parameters of CNC Series Digital Multi-Head Straight Cutter:

Model	Driving form	Rail gap (mm)	Effective width(mm)	Cutting thickness (mm)	Cutting speed (mm/min)	Max. speed (mm/min)	Vertical range (mm)
CNC-3000	Single side	3000	2100	6-200 (Refer to the performance of the cutting head)	100-750 (Refer to the performance of the cutting head)	6000	150
CNC-3500	Single side	3500	2600			6000	150
CNC-4000	Single side	4000	3100			12000	150
CNCⅡ-5000	Double side	5000	4100			12000	150
CNCⅡ-6000	Double side	6000	5100			12000	150
CNCⅡ-7000	Double side	7000	6100			12000	150
CNCⅡ-8000	Double side	8000	7100			12000	150
CNCⅡ-9000	Double side	9000	8100			12000	150
CNCⅡ-10000	Double side	10000	9000			12000	150
CNCⅡ-11000	Double side	11000	10100			12000	150
CNCⅡ-12000	Double side	12000	11100			12000	150
CNCⅡ-13000	Double side	13000	12100			12000	150

Wuxi ABK Machinery Co.Ltd is a professional manufacturer of CNC plasma cutting machine in China. And we can also provide our clients around the world with many other products including CNC table cutting machine, CNC water jet cutting machine, wind tower production line, H beam welding line, welding equipment, pipe welding equipment, grinding machine, roll forming machine, plate bending machine, etc. We have obtained ISO and CE certification, and we also offer OEM service. Our products have been well received by customers from many countries, such as Spain, India, Germany, South Africa, Brazil, Chile, Argentina, Russia, Italy, France, Vietnam, and more. If you're interested in our CNC plasma cutting machine, please don't hesitate to contact us whenever you want.
