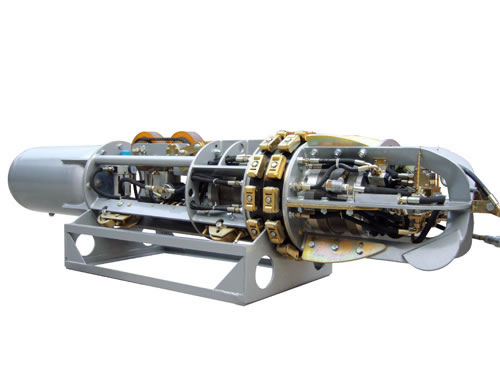

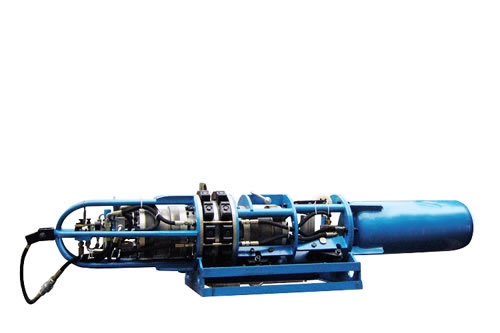

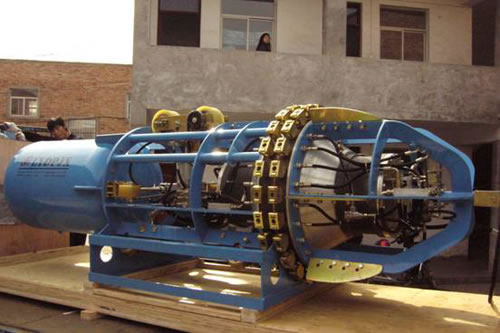

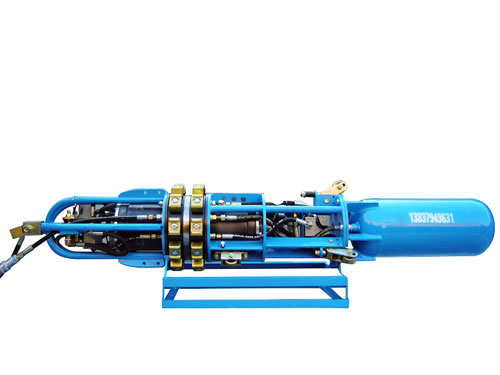

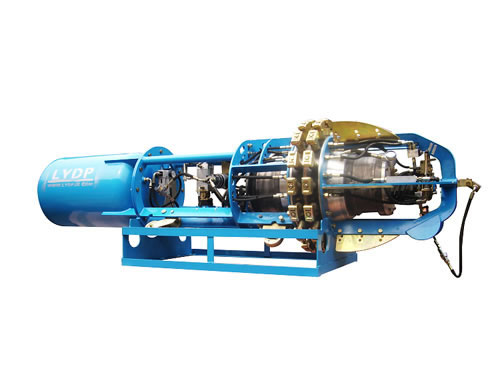

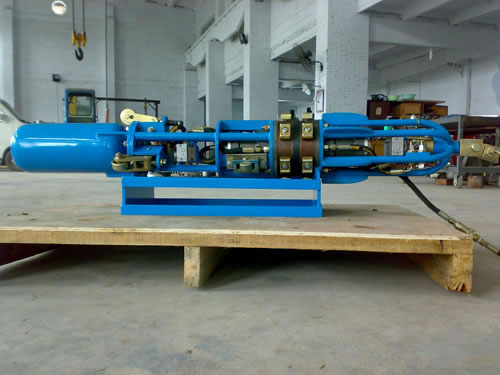

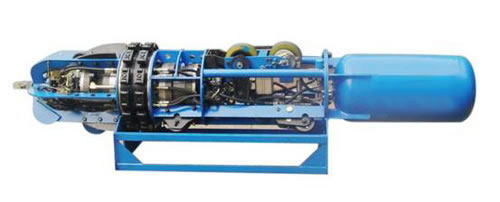

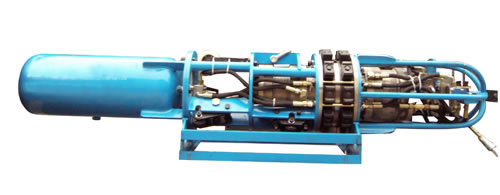

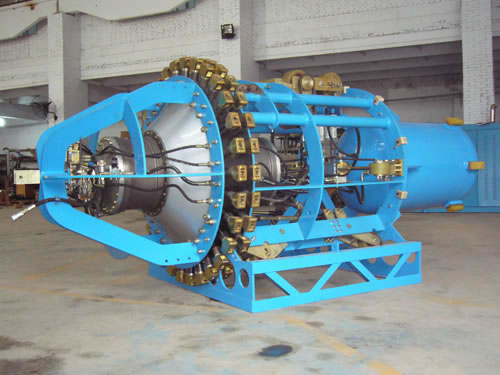

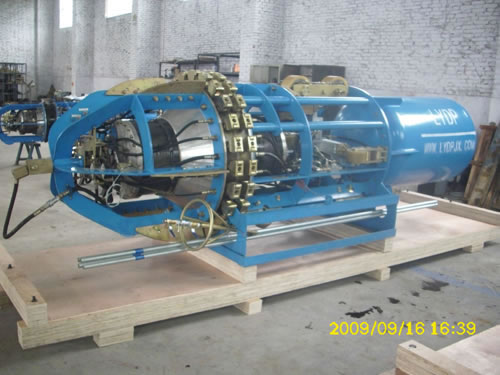

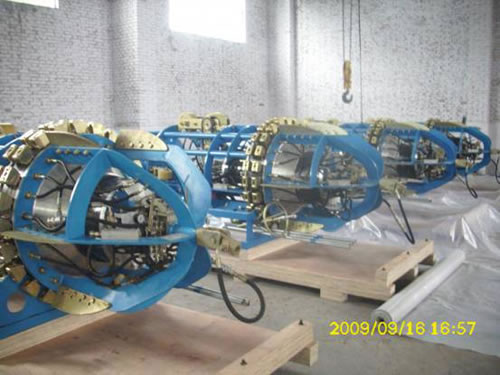

Internal Pipe Line-up Clamp

Internal Pipe Line-up Clamp

Description of Internal Pipe Line-up Clamp:

This internal pipe line-up clamp is mainly used to offer clamp pipes to welding pipe efficiently and precisely.
The welding quality in pipeline construction can be influenced by many factors, and the internal pipe line-up is the most important one. It can not only affect the welding quality, but also can impact the process procedure of the pipeline project. Of course, you can also choose external pipe line-up clamp to weld pipes, but both of its calibration precision and welding effects are poor. However, the internal pipe line-up clamp enjoys both high calibration precision and excellent welding effects.
Wuxi ABK Machinery Co.Ltd is a professional manufacturer of internal pipe line-up clamp in China. And we can also provide our clients around the world with many other products including external pipe line-up clamp, pipe bender, wind tower production line, H beam welding line, welding equipment, CNC cutting machine, grinding machine, roll forming machine, plate bending machine, etc. We have obtained ISO and CE certification, and we also offer OEM service. Our products have been well received by customers from many countries, such as Spain, India, Germany, South Africa, Brazil, Chile, Argentina, Russia, Italy, France, Vietnam, and more. If you're interested in our internal pipe line-up clamp, please don't hesitate to contact us whenever you want.

Technical Parameters of DKQ Series Internal Pneumatic Pipe Line-up Clamp:
Model DKQ273:

Applied range	Φ273 10 " (Able to be extended to Φ305)
Overall dimension	Φ170 × 1350
Mass	75KG
Press block amount	6 × 2
Elevating power	20T
Input pressure	1.5 Mpa
Working pressure	0.8 Mpa
Main component	FESTO pneumatic component

Model DKQ324:

Applied range	Φ323.85 12 " (Able to be extended to Φ355)
Overall dimension	Φ250 × 1500
Mass	125KG
Press block amount	8 × 2
Elevating power	25T
Input pressure	1.5 Mpa
Working pressure	0.8 Mpa
Main component	FESTO pneumatic component

Model DKQ355:

Applied range	Φ355.6　　14 " (Able to be extended to Φ377)
Overall dimension	Φ280 × 1500
Mass	175KG
Press block amount	10 × 2
Elevating power	55T
Input pressure	1.5 Mpa
Working pressure	0.8 Mpa
Main component	FESTO pneumatic component

Model DKQ406:

Applied range	Φ406-Φ457　　16 "-18 "
Overall dimension	Φ3600 × 1800
Mass	290KG
Press block amount	10 × 2
Elevating power	85T
Drive mode	Manual walk
Walking speed	Manual control
Climbing capacity	Manual control
Input pressure	1.5 Mpa
Working pressure	0.8 Mpa
Main component	FESTO pneumatic component

Model DKQ610C:

Applied range	Φ508-Φ559　20 "-22 "
Overall dimension	Φ470 × 2200
Mass	430KG
Press block amount	10 × 2
Elevating power	150T
Drive/brake mode	Unilateral two-wheel drive /Unilateral brake
Walking speed	0-1m/s
Climbing capacity	15°
Input pressure	1.5 Mpa
Working pressure	0.8 Mpa
Main component	FESTO pneumatic component Ingersoll Rand pneumatic motor or COOPER axial piston motor

Model DKQ610C:

Applied range	Φ610-Φ660　24 "-26 "
Overall dimension	Φ550 × 2700
Mass	550KG
Press block amount	12 × 2
Elevating power	183T
Drive/brake mode	Unilateral two-wheel drive /Unilateral brake
Walking speed	0-1m/s
Climbing capacity	15°
Input pressure	1.5 Mpa
Working pressure	0.8 Mpa
Main component	FESTO pneumatic component Ingersoll Rand pneumatic motor or COOPER axial piston motor

Model DKQ711:

Applied range	Φ711-Φ762(Able to be extended to Φ813)28 "-30 " (Able to be extended to 32" )
Overall dimension	Φ650 × 2900
Mass	700KG
Press block amount	12 × 2
Elevating power	270T
Drive/brake mode	Unilateral two-wheel drive /Unilateral brake
Walking speed	0-1m/s
Climbing capacity	15°
Input pressure	1.5 Mpa
Working pressure	0.8 Mpa
Main component	FESTO pneumatic component Ingersoll Rand pneumatic motor or COOPER axial piston motor

Model DKQ813:

Applied range	Φ813-Φ864(Able to be extended to Φ914), 32 "-34" (Able to be extended to 36" )
Overall dimension	Φ750 × 2900
Mass	760KG
Press block amount	16 × 2
Elevating power	300T
Drive/brake mode	Unilateral two-wheel drive /Unilateral brake
Walking speed	0-1m/s
Climbing capacity	15°
Input pressure	1.5 Mpa
Working pressure	0.8 Mpa
Main component	FESTO pneumatic component Ingersoll Rand pneumatic motor or COOPER axial piston motor

Model DKQ914:

Applied range	Φ914-Φ965(Able to be extended to Φ1016), 36 "-38" (Able to be extended to 40" )
Overall dimension	Φ850 × 3200
Mass	850KG
Press block amount	18 × 2
Elevating power	450T
Drive/brake mode	Unilateral two-wheel drive /Trilateral double brake
Walking speed	0-1m/s
Climbing capacity	15°
Input pressure	1.5 Mpa
Working pressure	0.8 Mpa
Main component	FESTO pneumatic component Ingersoll Rand pneumatic motor or COOPER axial piston motor

Model DKQ1016:

Applied range	Φ1016-Φ1066 (Able to be extended to Φ1118), 40 "-42 " (Able to be extended to 44" )
Overall dimension	Φ950 × 3200
Mass	1400KG
Press block amount	18 × 2
Elevating power	450T
Drive/brake mode	Unilateral two-wheel drive /Trilateral double brake
Walking speed	0-1m/s
Climbing capacity	15°
Input pressure	1.5 Mpa
Working pressure	0.8 Mpa
Main component	FESTO pneumatic component Ingersoll Rand pneumatic motor or COOPER axial piston motor

Model DKQ1168:

Applied range	Φ1168-Φ1219(Able to be extended to Φ1270)46 "-48 " (Able to be extended to 50 ")
Overall dimension	Φ 1000 × 3700
Mass	1800KG
Press block amount	20 × 2
Elevating power	650T
Drive/brake mode	Unilateral two-wheel drive /Trilateral double brake
Walking speed	0-1m/s
Climbing capacity	15°
Input pressure	1.5 Mpa
Working pressure	0.8 Mpa
Main component	FESTO pneumatic component Ingersoll Rand pneumatic motor or COOPER axial piston motor

Model DKQ1270:

Applied range	Φ1270-Φ1320(Able to be extended to Φ1372)　　50 "-52 " (Able to be extended to 54 ")
Overall dimension	Φ1150 × 4120
Mass	2000KG
Press block amount	24 × 2
Elevating power	650T
Drive/brake mode	Unilateral two-wheel drive /Trilateral double brake
Walking speed	0-1m/s
Climbing capacity	15°
Input pressure	1.5 Mpa
Working pressure	0.8 Mpa
Main component	FESTO pneumatic component Ingersoll Rand pneumatic motor or COOPER axial piston motor

Model DKQ1372:

Applied range	Φ1372-Φ1420(Able to be extended to Φ1473) 54"-56 " (Able to be extended to 58")
Overall dimension	Φ1250 × 4200
Mass	2300KG
Press block amount	30 × 2
Elevating power	750T
Drive/brake mode	Unilateral two-wheel drive /Trilateral double brake
Walking speed	0-1m/s
Climbing capacity	15°
Input pressure	1.5 Mpa
Working pressure	0.8 Mpa
Main component	FESTO pneumatic component Ingersoll Rand pneumatic motor or COOPER axial piston motor

Model DKQ1524:

Applied range	Φ1524-Φ1575(Able to be extended to Φ1626)　 60 "-62" (Able to be extended to 64" )
Overall dimension	Φ1380 × 4200
Mass	2600KG
Press block amount	6 30 × 2
Elevating power	750T
Drive/brake mode	Unilateral two-wheel drive /Trilateral double brake
Walking speed	0-1m/s
Climbing capacity	15°
Input pressure	1.5 Mpa
Working pressure	0.8 Mpa
Main component	FESTO pneumatic component Ingersoll Rand pneumatic motor or COOPER axial piston motor

Model DKQ1625:

Applied range	Φ1625-Φ1676(Able to be extended to Φ1727)　 64 "-66 " (Able to be extended to 68 " )
Overall dimension	Φ1475 × 4300
Mass	2800KG
Press block amount	30 × 2
Elevating power	750T
Drive/brake mode	Unilateral two-wheel drive /Trilateral double brake
Walking speed	0-1m/s
Climbing capacity	15°
Input pressure	1.5 Mpa
Working pressure	0.8 Mpa
Main component	FESTO pneumatic component Ingersoll Rand pneumatic motor or COOPER axial piston motor

Model DKQ1727:

Applied range	Φ1727-Φ1799(Able to be extended to Φ1829)　 68 "-70 " (Able to be extended to 72 " )
Overall dimension	Φ1570 × 4400
Mass	3000KG
Press block amount	30 × 2
Elevating power	750T
Drive/brake mode	Unilateral two-wheel drive /Trilateral double brake
Walking speed	0-1m/s
Climbing capacity	15°
Input pressure	1.5 Mpa
Working pressure	0.8 Mpa
Main component	FESTO pneumatic component Ingersoll Rand pneumatic motor or COOPER axial piston motor

Model DKQ1829:

Applied range	Φ1829-Φ1880(Able to be extended to Φ1930)　 72 "-74 " (Able to be extended to 76 " )
Overall dimension	Φ1680 × 4500
Mass	3500KG
Press block amount	36 × 2
Elevating power	850T
Drive/brake mode	Unilateral two-wheel drive /Trilateral double brake
Walking speed	0-1m/s
Climbing capacity	15°
Input pressure	1.5 Mpa
Working pressure	0.8 Mpa
Main component	FESTO pneumatic component Ingersoll Rand pneumatic motor or COOPER axial piston motor

Model DKQ1930:

Applied range	Φ1930-Φ1981(Able to be extended to Φ2032)　 76 "-78 " (Able to be extended to 80" )
Overall dimension	Φ1780 × 4500
Mass	3800KG
Press block amount	36 × 2
Elevating power	850T
Drive/brake mode	Unilateral two-wheel drive /Trilateral double brake
Walking speed	0-1m/s
Climbing capacity	15°
Input pressure	1.5 Mpa
Working pressure	0.8 Mpa
Main component	FESTO pneumatic component Ingersoll Rand pneumatic motor or COOPER axial piston motor

Model DKQ2032:

Applied range	Φ1524-Φ1575(Able to be extended to Φ1626)　 60 "-62" (Able to be extended to 64" )
Overall dimension	Φ1380 × 4200
Mass	2600KG
Press block amount	30 × 2
Elevating power	750T
Drive/brake mode	Unilateral two-wheel drive /Trilateral double brake
Walking speed	0-1m/s
Climbing capacity	15°
Input pressure	1.5 Mpa
Working pressure	0.8 Mpa
Main component	FESTO pneumatic component Ingersoll Rand pneumatic motor or COOPER axial piston motor
