Description of Pipe Bender

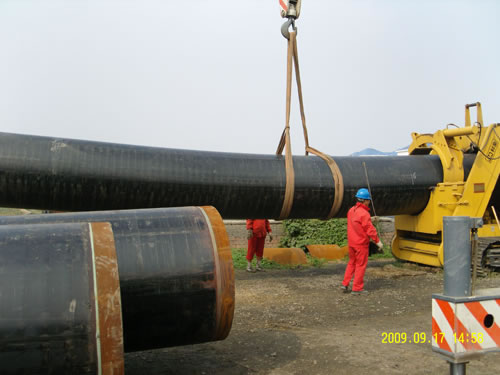

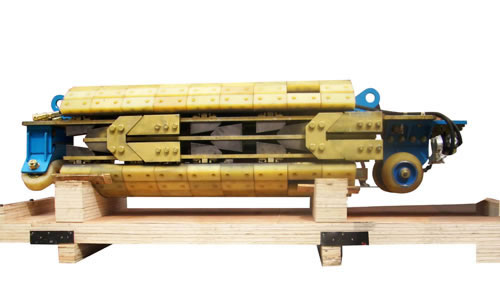

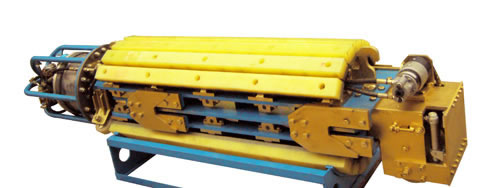

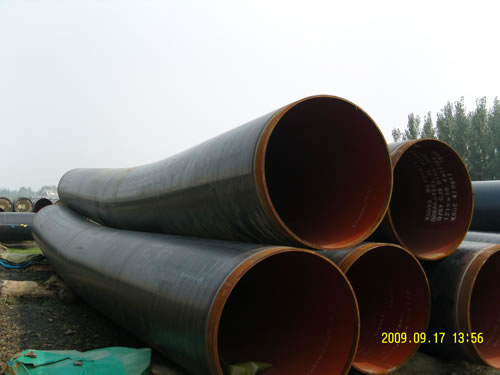

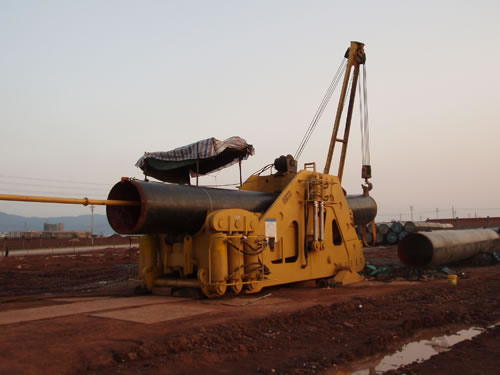

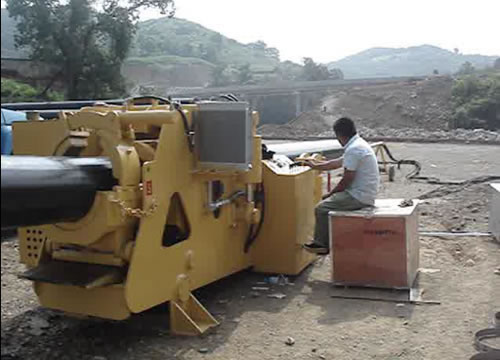

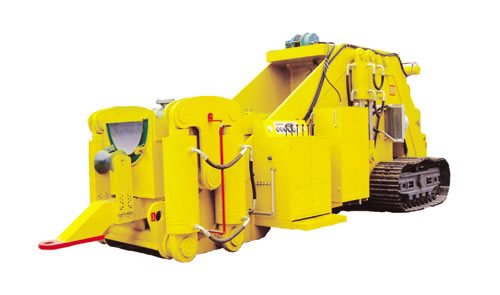

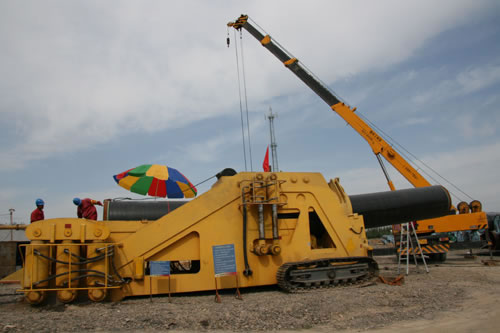

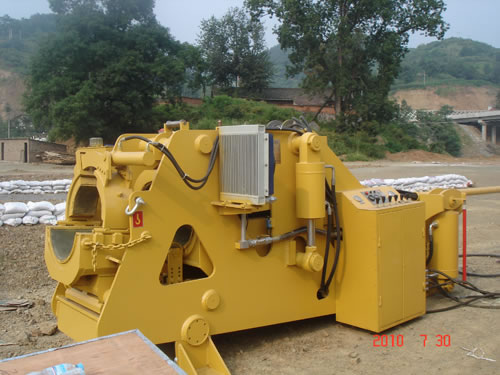

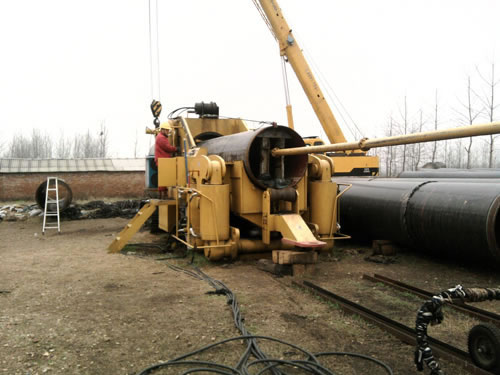

Our pipe bender is a vertical hydraulic pipe bender, and it can bend various pipes, such as steel pipes, stainless steel pipes, copper pipes, aluminum pipes, and many other kinds of pipes.
This vertical hydraulic pipe bending machine is an excellent hydraulic-driven device and it features high reliability, long service lifespan, easy maintenance, simple structure, durable and firm frame, high performance, etc.
Wuxi ABK Machinery Co.Ltd is a professional manufacturer of pipe bender in China. And we can also provide our clients around the world with many other products including roller cradle, CNC flame cutting machine, CNC plasma cutting machine, wind tower production line, H beam welding line, welding equipment, pipe welding equipment, CNC cutting machine, grinding machine, roll forming machine, plate bending machine, etc. We have obtained ISO and CE certification, and we also offer OEM service. Our products have been well received by customers from many countries, such as Spain, India, Germany, South Africa, Brazil, Chile, Argentina, Russia, Italy, France, Vietnam, and more. If you're interested in our pipe bender, please don't hesitate to contact us whenever you want.

Performance Parameters of PBM Series Vertical Hydraulic Pipe Bender
Model	PBM0620	PBM1630	PBM2236	PBM3242	PBM3248	PBM4860
Diameter range of bending pipes	Ф168-Ф508mm	Ф406-Ф762mm	Ф559-Ф914mm	Ф711-Ф1067mm	Ф711-Ф1219mm	Ф1219-Ф1524mm
Applicable pipes	Screwed pipes, straight seam pipes, seamless pipes, and steel pipes with inner and outer anticorrosive coating(This bender does not damage the anticorrosive coating.)
Operation temperature	-20℃~ +50℃ (The relative humidity is no more than 85 %.)
Engine power	46KW	75KW	125KW	132KW	160KW	160KW
Pressure of hydraulic system	16MPa	16MPa	16MPa	16MPa	16MPa	21MPa
Master oil cylinder	Two 220× 350 cylinders	Two 280×500 cylinders	Four 320× 500 cylinders	Four 360×500 cylinders	Four 450×560 cylinders	Six 360×560 cylinders
Lift cylinder	Two180×200 cylinders	Two 200× 200 cylinders	Four 220× 200 cylinders	Four 250× 200 cylinders	Four 280× 200 cylinders	Four 280× 200 cylinders
Hydraulic winch pull	1.5t	2.5t	7t	7t	8t	12t
Track	The track is omniseal lubrication and maintenance-free, and it is especially applicable to work in cold climate. It needs no extra maintenance and can be used immediately after a long time of storage.
Overall size(mm) (length×width× height)	4450×2180×2175	6600×2650×2700	8400×3000×2800	8850×3180×3000	9800×3335×3235	main machine size: 9875×3190×3500 power unit size: 4300× 2280×2760
Total weight	About 8t	About 20t	About 42t	About 50t	About 68t	About 93t

Recommended Bending Parameters of Φ168mm-Φ1524mm Steel Pipe

PBM0620 Type Vertical Hydraulic Pipe Bender
Outer diameter of steel pipe(mm)	Max. bending thickness(mm)					Recommended bending parameters
	X52 L360	X60 L415	X65 L465	X70 L485	X80 L555	Max. one-off bending angle	Max. bending angles (per 12m)	Moving distance every time
168	59	40	37	35		4.0	108	300-400mm
219	57	38	36	34		3.4	93
273	55	37	35	33		3.0	81
324	53	35	30	29		2.4	65
356	45	30	27	24		1.74	47
406	36	26	22	19		1.52	41
457	28	21	17	14		1.0	29
508	20	17	13	10		0.7	20
Note: The maximum bending angle is suitable for straight seam steel pipes; 75% of the recommended bending angel is applicable to screwed pipes; and the efficient bending length of steel pipes is 8m.

PBM1630 Type Vertical Hydraulic Pipe Bender
Outer diameter of steel pipe(mm)	Max. bending thickness(mm)					Recommended bending parameters
	X52 L360	X60 L415	X65 L465	X70 L485	X80 L555	Max. one-off bending angle	Max. bending angle (per 12m)	Moving distance every time
406	57	45	40	36		1.51	40.8	No longer than 300mm
457	47	38	33	30		1.1	29.7
508	43	33	31	30		0.9	24.4
559	38	31	30	26		0.8	20.6
610	33	26	25	23		0.75	20.3
660	27	25	22	19		0.7	18.9
711	22	19	17	15		0.65	17.6
762	20	17	15	14		0.6	16.2
Note: The maximum bending angle is suitable for straight seam steel pipes; 75% of the recommended bending angel is applicable to screwed pipes; and the efficient bending length of steel pipes is 8m.

PBM2236 Type Vertical Hydraulic Pipe Bender
Outer diameter of steel pipe(mm)	Max. bending thickness(mm)					Recommended bending parameters
	X52 L360	X60 L415	X65 L465	X70 L485	X80 L555	Max. one-off bending angle	Max. bending angle (per 12m)	Moving distance every time
559	58	51	48	43		0.9	23.4	No longer than 300mm
610	54	48	44	40		0.8	20.8
660	49	43	41	38		0.7	18.2
711	43	39	37	35		0.65	16.9
762	40	37	34	32		0.6	16.2
813	37	35	32	29		0.6	16.2
864	35	33	29	28		0.6	16.2
914	32	30	27	25		0.5	13
Note: The maximum bending angle is suitable for straight seam steel pipes; 75% of the recommended bending angel is applicable to screwed pipes; and the efficient bending length of steel pipes is 8m.

PBM3242 Type Vertical Hydraulic Pipe Bender
Outer diameter of steel pipe(mm)	Max. bending thickness(mm)					Recommended bending parameters
	X52 L360	X60 L415	X65 L465	X70 L485	X80 L555	Max. one-off bending angle	Max. bending angle (per 12m)	Moving distance every time
813	45	39	38	34		0.58	15.6	No longer than 350mm
864	44	37	36	33		0.55	14.8
914	42	34	34	31		0.5	13.5
965	39	32	31	29		0.5	12.75
1016	36	30	28	27		0.5	12.75
1067	35	28	26	25		05	12.5
Note: The maximum bending angle is suitable for straight seam steel pipes; 75% of the recommended bending angel is applicable to screwed pipes; and the efficient bending length of steel pipes is 8m.

PBM3248 Type Vertical Hydraulic Pipe Bender
Outer diameter of steel pipe(mm)	Max. bending thickness(mm)					Recommended bending parameters
	X52 L360	X60 L415	X65 L465	X70 L485	X80 L555	Max. one-off bending angle	Max. bending angle (per 12m)	Moving distance every time
813	86	74	66	60	52	0.50	15.00	No longer than 300mm
864	75	67	63	54	46	0.50	13.40
914	74	65	62	53	45	0.50	12.75
965	72	65	61	52	44	0.50	12.75
1016	69	63	59	50	42	0.50	12.75
1067	66	61	57	48	40	0.50	12.75
1118	63	59	55	46	38	0.50	10.50
1168	61	57	53	44	36	0.50	10.50
1219	58	54	50	41	33	0.50	10.50
Note: The maximum bending angle is suitable for straight seam steel pipes; 75% of the recommended bending angel is applicable to screwed pipes; and the efficient bending length of steel pipes is 8m.

PBM4860 Type Vertical Hydraulic Pipe Bender
Outer diameter of steel pipe(mm)	Max. bending thickness(mm)					Recommended bending parameters
	X52 L360	X60 L415	X65 L465	X70 L485	X80 L555	Max. one-off bending angle	Max. bending angle (per 12m)	Moving distance every time
1219	48	48	48	48	38	0.50	10.50	300-400mm
1270	48	48	48	44	35	0.50	10.50
1321	48	48	48	41	32	0.50	10.50
1372	48	48	48	38	30	0.50	10.50
1422	48	48	44	35	27	0.50	10.50
1473	46	44	40	36	25
1526	45	43	38	35	25
Note: The maximum bending angle is suitable for straight seam steel pipes; 75% of the recommended bending angel is applicable to screwed pipes; and the efficient bending length of steel pipes is 8m.
