Roller Cradle

Roller Cradle

Description of Roller Cradle:

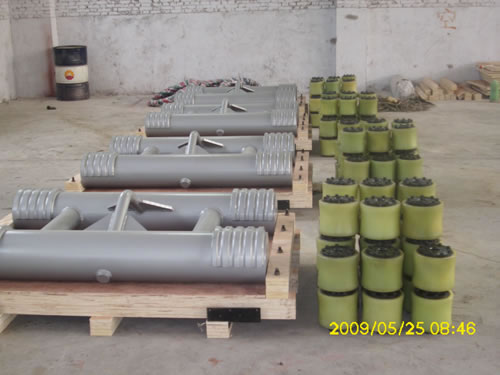

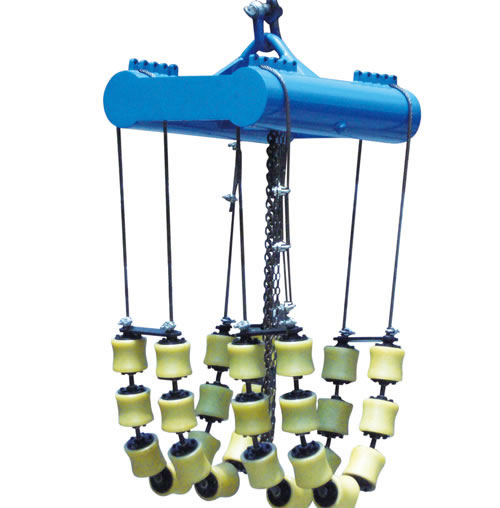

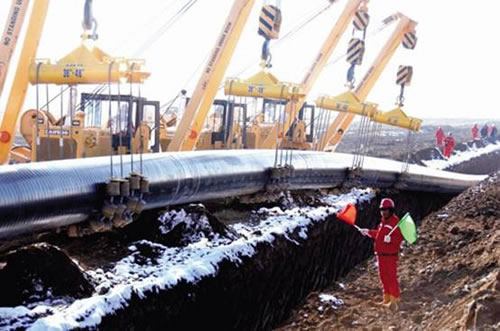

This roller cradle is mainly designed to provide due support for line-moving devices and to help lower various pipes into ditches, and it can deal with pipes with different specifications. Its cradle lift is mainly used to lift pipe sections while the accompanying polyurethane rollers can protect the heavy pipe as well as its coating.
It features reasonable design, rational structure, light weight, strong lifting power, safe and reliable performance, and more. And it is made of special polyurethane rollers, with excellent gluing property and high abrasive resistance.
Established in 1999, Wuxi ABK Machinery Co.Ltd is a professional manufacturer of roller cradle in China Apart from roller cradle, we still have many other high-quality products, such as CNC flame cutting machine, CNC plasma cutting machine, wind tower production line, H beam welding line, welding equipment, pipe welding equipment, grinding machine, roll forming machine, plate bending machine, etc. With ISO and CE certification, our products are quite popular among clients from Spain, India, Germany, South Africa, Brazil, Chile, Argentina, Russia, Italy, France, Vietnam, and more. If you need roller cradle, please contact us freely.

Technical Parameters of Roller Cradle:

Name	Roller cradle
Model	DL1224		DL2436		DL3648
Applicable pipeline diameter	IN	12”-24”	IN	24”-36”	IN	36”-48”
	mm	305-610	mm	610-914	mm	914-1219
Roller number	28		32		36
Max. lifting weigh	15,000kg		40,000 kg		60,000 kg
Total weight	600 kg		1500		2000
Overall dimension(L× W× H)	900×800×1,500		1200×900×2000		1500×1000×2200
