Shot Blasting Machine

Shot Blasting Machine

Description:

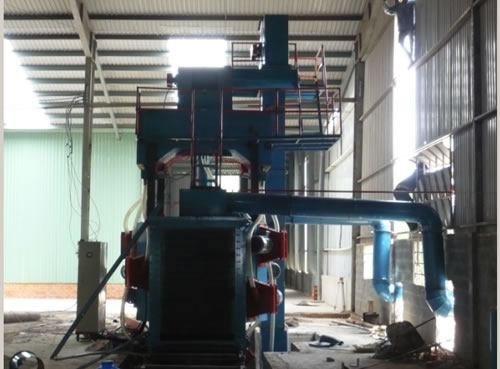

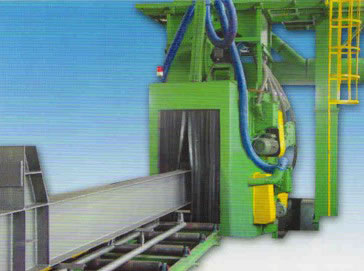

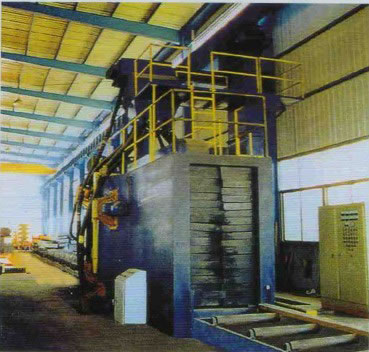

This shot-blasting machine using rolling path can continuously operate. It is a kind of automatic ball blasting device. This machine is mainly used in clearing the rust oxidized shin of H-beam, steel plate, steel pipeline. And it can smooth the beam surface and makes the steel easy to paint.

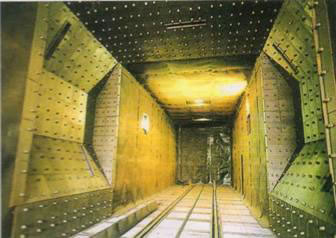

Our sand blasting machine can transports the work piece by trolley in double way, which makes the machine in the high efficiency. In addition, the sand blasting machine uses chromic steel plate that can protects the machine and can extent the using time.

Main Technical Parameter:

Model		HP0816	HP1018	HP1220
Dimension of Work-piece to be Cleaned	Allowable passing section (width×heigth)	800×1600mm	1000×1800mm	1200×2000mm
	Length of workpiece	16000mm	16000mm	16000mm
Quality Standard	Clearness of surface		A-B Sa2-Sa2.5
	Roughness of surface		15-20um
Production Efficiency(Travel Speed of Workpiece		0.4-2.5m/min	0.4-2.5m/min	0.4-2.5m/min
Abrator	Model	Q034	Q034	Q034
	Quantify	8	8	8
	Abrator Capacity	8×250kg/min	8×250kg/min	8×250kg/min
	Power	8×11kw	8×11kw	8×15kw
Circulation Capacity of Material for Abrator		100t/h	110t/h	120t/h
Roller Path for Import/Output	Allowable Load	1000kg/m	1000kg/m	1000/kg/m
	Conveying Speed	0.4-4m/min	0.4-4m/min	0.4-4m/min
Initiate Adding Quantity of Material for Abrator		5000kg	6000kg	8000kg
Anti-dust System	Treated Wind Volume	16000m³/h	16000m³/h	16000m³/h
	Power	15kw	15kw	22kw
Total Power		About140kw	About140kw	172kw

By absorbing merits of similar shot blasting machine and using new technology from abroad and China domestic, Wuxi ABK is the professional producer to develop and manufacture the family shot blasting machine products including box beam production line, T-beam welding production line, bridge-face U-stiffer welding production line, and steel structure cold roll forming production line as well as CNC waterjet cutting machine. With years development, ABK shot blasting machine have been spread over Saudi Arabia, Russia, Middle Asian, Southeast Asian, Australia, Europe, South American, North American, etc. Look forward to establishing mutually beneficial cooperation.
