Welding Positioner

Welding Positioner

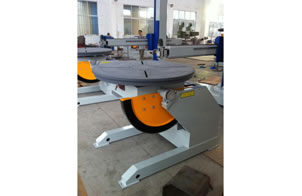

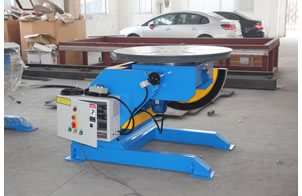

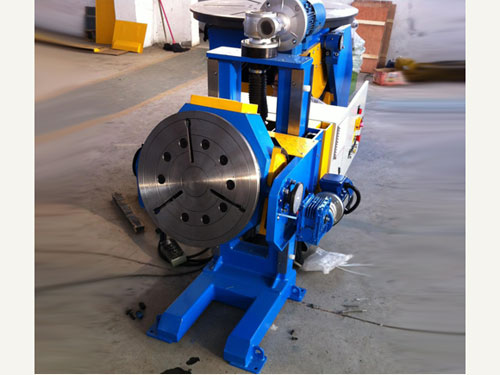

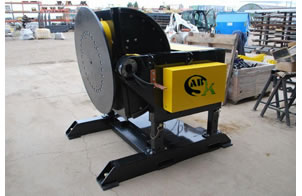

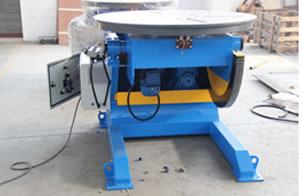

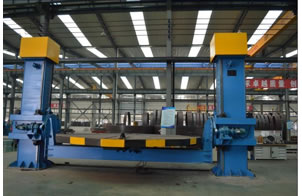

Description of Welding Positioner:

This welding positioner, also called welding positioning equipment, is mainly used for some special structures, construction machines, small round worpieces, and more. And it mainly consists of a working table, turning device, overturning device, electricity-conducting device, stander and electric cabinet. Its working table is driven by the turning device with 6 T-style slots to ensure workpieces strictly fixed on the working table.
Its turning device is mainly composed of a motor, a speed reducer, and a swing set. And its overturning device mainly consists of an electric motor, cycloidal gear speed reducer, worm wheel speed reducer, and semicircular gear.
We can design and produce welding positioners in accordance with the specific requirements of our clients.

Features of Welding Positioner:

1. Our welding positioner has employed frequency conversion speed regulation system to change its running speed.
2. The stepless speed regulation is adopted to make this positioner easy to control and cheap to maintenance.

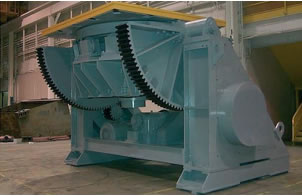

3. Semicircular gears are equipped on both ends of the output shaft of the overturn device.
4. One end of the electricity-conducting device is connected with the swing set, and the other end has an electricity-conducting shaft. The electricity-conducting shaft is linked with the working table so that the welding current can be directly transmitted through the working table.
5. The box-shaped stander possesses high loading capacity. And it is made up of Q235-A steel which has undergone annealing and finish machining treatment, thus successfully avoiding the welding stress deformation.

Technical Parameters of HBJ Series Welding Positioner:

Model		HBJ-01	HBJ-03		HBJ-06	HJB-12	HBJ-30	HBJ-50	HBJ-100
Rated load capacity (kg)		100	300		600	1200	3000	5000	10000
Turning speed(rpm)		0.4-4	0.1-1		0.09-0.9	0.05-0.5	0.05-0.5	0.05-0.5	0.05-0.2
Overturn speed(rpm)		handle			1.1	0.67	0.23	0.14	0.14
Diameter of working table(mm)		￠400	￠600		￠1000	￠1200	￠1400	￠1500	￠2000
Turning angle (°)		0-120	0-90		0-90	0-120
Motor power (KW)	Turning	0.06	0.37		0.75	1.1	1.5	3	5.5
	Overturning				0.75	2.2	1.5	3	5.5
Speed regulation Type		Stepless frequency conversion
Max. gravity distance(mm)		100	100		100	150	200	300	400
Max. eccentricity (mm)		150	150		150	200	200	300	400
Max. rotating diameter when 90° overturned (mm)		￠600	￠800		￠1500	￠2050	￠2100	￠2500	￠3240

Established in 1999, Wuxi ABK Machinery Co.Ltd is a professional manufacturer of welding positioner in China. Apart from welding positioner, we still have many other high-quality products, such as welding rotator, welding turnable, wind tower production line, H beam welding line, pipe welding equipment, CNC cutting machine, grinding machine, roll forming machine, plate bending machine, etc. With ISO and CE certification, our products are quite popular among clients from Spain, India, Germany, South Africa, Brazil, Chile, Argentina, Russia, Italy, France, Vietnam, and more. If you need welding positioner, please contact us freely.
